S71912ACD/HCP4A軸承
S71912ACD/HCP4A軸承(內徑：60 外徑：85厚度：13的角接觸球軸承)，S71912ACD/HCP4A軸承是蘇州凱諾永晟提供的SKF品牌軸承，
此外我公司還為您推薦各種國產、其他進口品牌替換S71912ACD/HCP4A軸承。公司承載著“以質量為本，服務為路線”的道路深得各機械行業公司的信任！
更多高轉速、高載荷等適用于極限環境的軸承庫存現貨，請致電“0512-57922999”咨詢！
| 角接觸球軸承, 精密, S .. ACD/HC, sealed, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 60 | 85 | 13 | 18,6 | 14,6 | 0,62 | 16000 | - | 0,16 | S71912 ACD/HCP4A | - | |

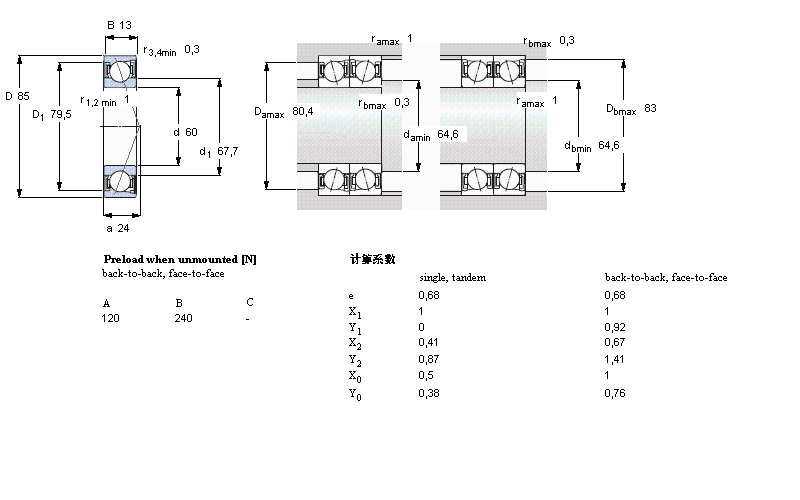

此軸承 樣本圖紙
